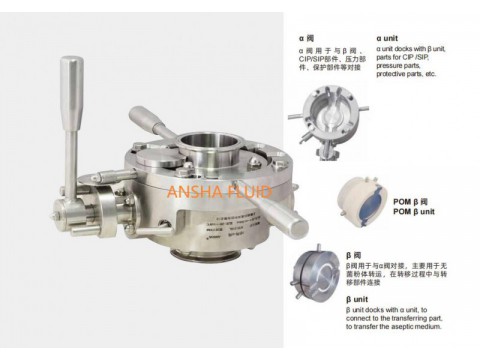

αβ valve, or AB valve, split butterfly valve, it is designed to operate by using the active unit (α unit) and the passive unit (β unit). The active unit and the passive unit connect the respective vessel, and combine to a complete butterfly valve when docked. It is suitable for containment transfer and aseptic transfer. The active unit and the passive unit have their own self lock systems. When docked, the self-lock system will be released, and the active unit and passive unit are interlocked, the combined disc can be opened; When the discs are in the opened position, the active unit and the passive unit cannot be separated. The optional accessories are available for pressure-containing purpose, CIP and SIP.
| Techincal parameters | |
| Nominal Size | 1.5" ~12" |
| Connection | Tri-clamp / Flange |
| Connecting Standard | 3A / ASME-BPE / ISO / DIN |
| Working Pressure | -0.1～+0.5MPa (α-β docked) |
| Working Temperature | -40～+150℃ |
| Working Medium | Powders / Granules / Capsules / Tablets / Rubber plugs, etc |
| Body Material | SS304 / SS316L / Hastelloy / TA2 / POM / PEEK |
| Sealing Material |
FKM / EPDM / VMQ / FFKM (Comply with FDA 21 CFR177.2600） |
| Sterilized method | Off-line / SIP |
| operation | Manual / pneumatic |
| Containment Level |
OEB Level 4 (OEL≤10μm / m3） OEB level 5 (OEL<1μm / m3) |
| Surface roughness | Ra<0.4μm (Product contact） |
| Ra<0.8μm (Non-product contact) | |
| Optional Accessories |
Active pressure plug / Active protection plugs / Passive pressure cover / Passive protective cover / Top and bottom cleaning / Sterilizating part,etc. |
| Accessories for AB Valve | ||
| ① | Active pressure plug | Used for pressurized conditon of the active unit |
| ② | Passive pressure cover | Used for pressurized conditon of the passive unit |
| ③ | Active bottom cleaning & draining unit | For cleaning and draining when the active unit is installed in reverse position |
| ④ | Active bottom draining unit | For draining when the active unit is installed in reverse position |
| ⑤ | Active top cleaning unit | For cleaning when the active unit is installed in upright position |
| ⑥ | Passive cleaning unit | For cleaning the passive unit |
| ⑦ | IBC cleaning unit | For cleaning the IBC, the active unit or passive unit |
| ⑧ | Docking Compensator | For compensating the positional deviation of the active unit and the passive unit |
