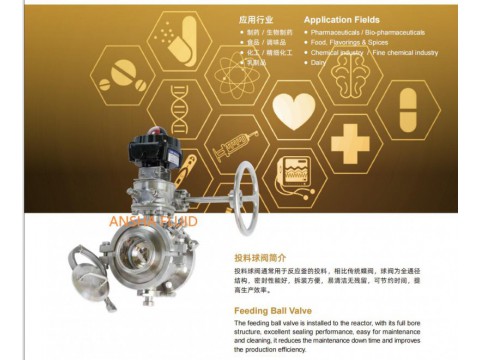

The feeding ball valve is installed to the reactor, with its full bore structure, excellent sealing performance, easy for maintenance and cleaning, it reduces the miantenance down time and improve the production efficiency.
| Feeding Ball Valve | |
| Techincal Parameters | |
| Nominal Size | 2.0"~8.0" |
| Connection | Tri-clamp / Flange |
| Connecting Standard | 3A / ASME-BPE / ISO / DIN |
| Working Pressure | -0.1～+0.5MPa |
| Working Temperature | -40～+150℃ |
| Working Medium | Powders |
| Body Material | SS304 / SS316L / HC22 / TA2 |
| Sealing Material | RPTFE |
| operation | Manual / Pneumatic |
| Surface roughness | Ra<0.4μm (Product contact） |
| Ra<0.8μm (Non Product contact） | |
