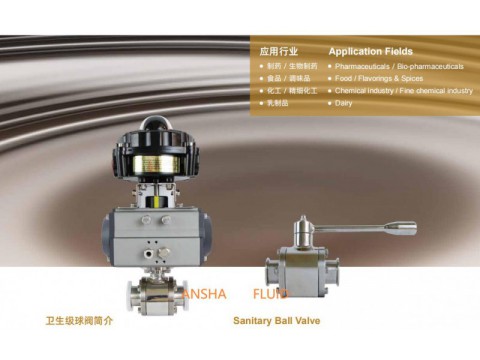

The sanitary ball valve is used for the control of the fluid flow. Full bore design structure will allow the fluid to flow without any resistance. It is suitable for low or high viscosity. Special valve design for CIP and SIP is available. The valve body material can be customized, and there is an option to choose some valve parts such as solenoid valve, position feedback controller, intelligent controller, intelligent positioner,etc.
| Techincal Parameters | |
| Nominal Size | 1/8"-8.0" |
| Connection | Tri-clamp / Flange / Weld / thread |
| Connecting Standard | 3A / ASME-BPE / ISO / DIN |
| Working Pressure | -0.1~1.0MPa |
| Working Temperature | -40～+150℃ |
| Working Medium | Gas / Liquid |
| Body Material | SS304 / SS316L / HC22 / TA2 |
| Body structure | Two way type / Three way type |
| Sealing Material | RPTFE |
| Operation | Manual / Pneumatic |
| Surface roughness | Ra<0.4μm (Product contact） |
| Ra<0.8μm (Non Product contact） | |
