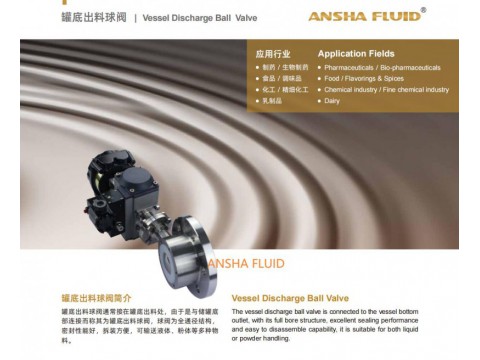

The vessel discharge ball valve is connected with the bottom of vessel, with its full bore structure, excellent sealing performance and easy to disassemble capability, Both liquid medium and the powders are available for handling.
| Techincal Parameters | |
| Nominal Size | 1.0"~8.0" |
| Connection | Tri-clamp / Flange |
| Connecting Standard | 3A / ASME-BPE / ISO / DIN |
| Working Pressure | -0.1～+0.5MPa |
| Working Temperature | -40～+150℃ |
| Working Medium | Gas / Liquid |
| Body Material | SS304 / SS316L / HC22 / TA2 |
| Sealing Material |
FKM(VITION) / EPDM / VMQ / FFKM (Comply with FDA 21 CFR177.2600） |
| Operation | Manual / Pneumatic / Electric |
| Surface Roughness | Ra<0.4μm (Product contact） |
| Ra<0.8μm (Non Product contact） | |
