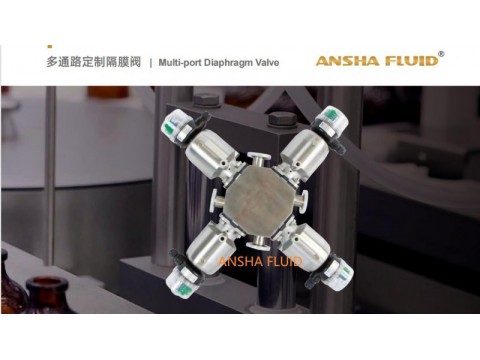

The diaphragm valves can have a combination of different sizes based on service requirement. It helps to save cost and installation space, as well as to minimize the pressure drop. The valve body is available in different combination or as a single forged body. The special design allows the control of different flow medium in a single valve without contamination.
| Techincal parameters | |
| Nominal Size | 1/4"-4.0" |
| Connection | Tri-clamp / Flange / Weld |
| Connecting Standard | 3A / ASME-BPE / ISO / DIN |
| Working Pressure | -0.1～+1.0MPa |
| Working Temperature | -40～+150℃ |
| Working Medium | Gas / Liquid |
| Body Material | SS316L / HC22 / TA2 / SS304 lining PFA |
| Sealing Material | PTFE+EPDM / VMQ / EPDM |
| Operation | Manual / Pneumatic |
| Surface Roughness | Ra<0.4μm (Product contact） |
| Ra<0.8μm (Non Product contact） | |
