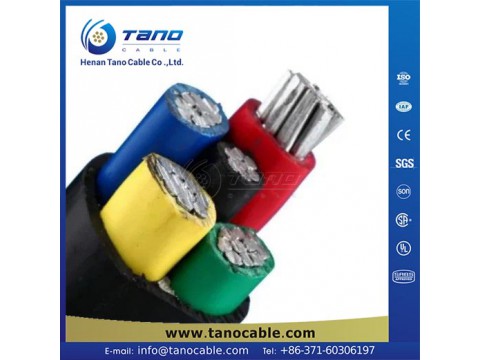

Click image to view original image
Medium voltage cables are large power carriers from electric stations to transmit & distribute further to substations in residential areas. Also used in industries, commercial complexes with high energy requirements. Voltage range includes from 3.6/6 kV to 19/33 kV. These cables are manufactured to international standards including BS, IEC and other national & utility standards.
XLPE is the abbreviation of cross linked polyethylene. In this type of cable stranded aluminum or copper conductor is screened in the form of semi-conductive extrusion providing a smooth conducting surface. The property of high thermal insulation makes it more suitable to use in both high voltage temperature conditions.
Construction
- STEEL WIRE ARMORED
- Conductor: Copper or aluminum, Class 1 solid conductor, Class 2 stranded conductor
- Conductor screen: semi- conducting compound
- Insulation: XLPE
- Insulation screen: semi- conducting compound
- PVC Outer Sheath: PVC
- metal screen: Copper tape
- Armored: Steel wire
Applicable Standards
- ASTM
- IEC
- DIN
- BS
- NFC
-
- 6/10kV
- 8.7/15kV
- 12/20kV
-
18/30kV
Product Range
- 1 core – 50 to 1000 mm2
- 3 cores
