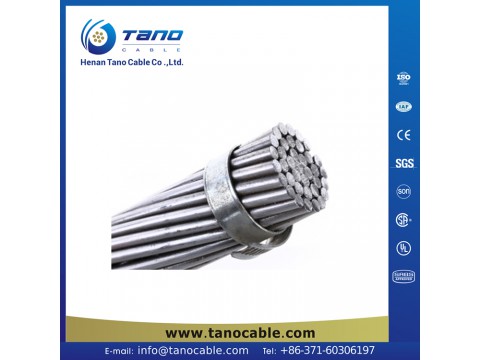

ACSR conductor 477mcm also name aluminum conductor steel reinforced

APPLICATION:
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

PRODUCT FEATURES:
Aluminum alloy 1350-H-19 wires, concentrically stranded about one steel core. Core wire for ACSR is available with class A, B, or C galvanizing; “aluminized” aluminum coated (AZ); or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

SPECIFICATIONS:
ACSR bare conductor meets or exceeds the following ASTM specifications:

B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc-Coated and Aluminum-Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)
