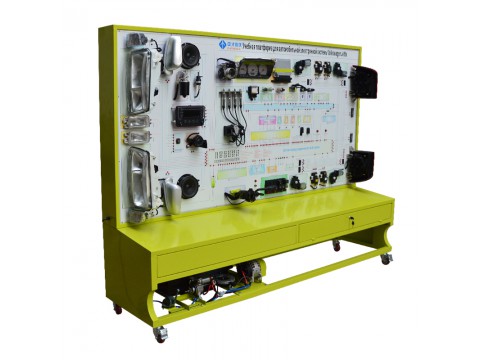

Functional features
1. Real and operable vehicle electrical system, fully display the composition of the vehicle electrical system.
Turn on the power supply, operate various electrical switches and buttons on the teach board, and truly demonstrate the working process of various systems of automotive electrical appliances such as automobile engine electronic control system, instrument system, lighting system, wiper system, horn system, ignition system, power window system, electric door lock, audio system, starting system and charging system.
2. The equipment panel adopts high-grade aluminum-plastic panel with resistance to impact, pollution, fire and moisture, and the surface is treated by special process spraying primer; The panel is printed with a color circuit diagram that never fades; Students can intuitively compare circuit diagrams and physical objects to understand and analyze the working principle of each system of automobile electrical appliances.
3. The detection terminal is installed on the panel of the teaching board, which can directly detect the electrical signals of the circuit components of each system of the automobile electrical appliance on the panel, such as resistance, voltage, current, frequency signal, etc.
4. The equipment panel is equipped with a diagnostic seat, which can be connected to a special or general-purpose automotive decoder to perform ECU code query, read fault code, clear fault code, read data flow, perform component testing, parameter setting, waveform analysis, key matching and other self-diagnosis functions for engine control unit, instrument cluster, comfort system unit, etc.
5. The panel part of the equipment adopts the panel part of the 1.5mm cold plate stamping forming structure, which has a beautiful appearance; the bottom frame part adopts steel structure welding, and the surface adopts spraying process with self-locking caster device.
