Functional features

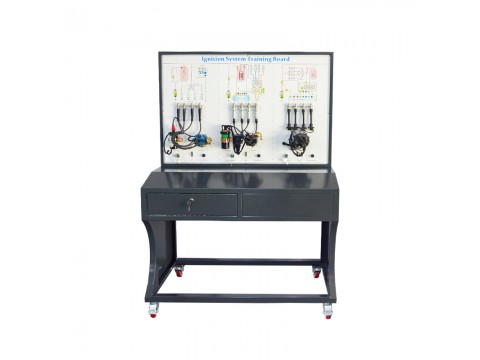

1. Six typical engine ignition systems that can be operated can fully display the composition and working process of contact ignition system, Hall electronic ignition system, magnetic induction ignition system and distributorless group ignition system, photoelectric ignition system.
2. The teach-in board panel adopts 4mm thick high-grade aluminum-plastic panel with corrosion resistance, impact resistance, pollution resistance, fire prevention and moisture resistance, and the surface is sprayed with primer treatment by special process; The panel is printed with a color circuit diagram and working principle diagram that will never fade; Students can visually compare circuit diagrams and physical objects to understand and analyze the working principle of various ignition systems.
3. The detection terminal is installed on the panel of the teaching pendant, which can directly detect the electrical signals of each circuit component of the ignition system, such as resistance, voltage, current, frequency signal, etc. on the panel.
4. The teaching board panel is equipped with a diagnostic seat, which can be connected to a special or general automotive decoder to read the fault code and clear the fault code and other self-diagnosis functions of the engine electronic control system.
5. The panel part of the teaching board adopts 1.5mm cold plate stamping forming structure, which has beautiful appearance; the bottom frame part adopts steel structure welding, the surface adopts spraying process, with self-locking caster device, and the base of the teaching board is equipped with a desktop of about 40cm, which is convenient for placing data and light testing instruments.
6. The teaching board works with ordinary 220V AC power supply, which is converted into 12V DC power supply by internal circuit voltage transformation rectification, without battery, reducing the trouble of charging, and 12V DC power supply has anti-short circuit function.
