Functional features

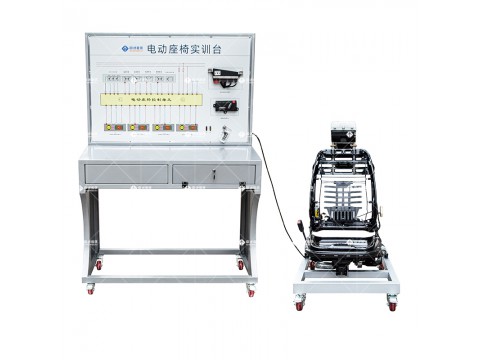

1. Real operable car driver's side power seat, fully display the composition of car power seat.
Operate the power seat switch, which can adjust the front and rear movement, tilt adjustment, front and rear vertical adjustment of the power seat, etc.; The memory switch is operated to store driving position information, which can be restored to the set seat position after others change the seat posture. A realistic demonstration of how a car power seat with memory function works.
2. The teach-in board panel adopts 4mm thick high-grade aluminum-plastic panel with corrosion resistance, impact resistance, pollution resistance, fire prevention and moisture resistance, and the surface is sprayed with primer treatment by special process; UV flatbed inkjet panel printed with color circuit diagram that never fades; Students can visually compare circuit diagrams and physical objects to understand and analyze the working principle of car power seats.
3. The test terminal is installed on the panel of the teaching pendant, which can directly detect the electrical signals of each circuit component of the power seat, such as resistance, voltage, current, frequency signal, etc. on the panel.
4. The panel part of the teaching board adopts 1.5mm cold plate stamping forming structure, which has beautiful appearance; the bottom frame part adopts steel structure welding, and the surface adopts spraying process with self-locking caster device.
5. The teaching board works with ordinary 220V AC power supply, which is converted into 12V DC power supply by internal circuit voltage transformation rectification, without battery, reducing the trouble of charging, and 12V DC power supply has anti-short circuit function.
