Functional features
1. Real and operable car power window, central door lock and rearview mirror system, fully display the composition of automotive power window, central door lock and rearview mirror system.
2. Operate the power window switch, central control door lock switch and rearview mirror switch, which can truly demonstrate the working process of the car power window, central control door lock and rearview mirror system.

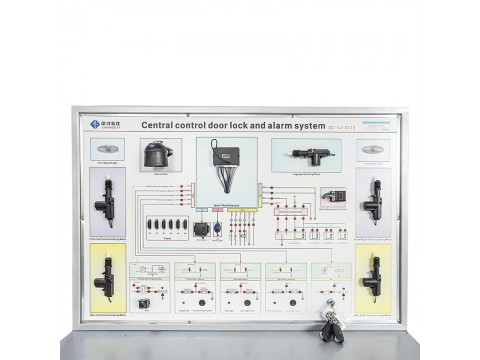

3. The teach-in board panel adopts 4mm thick high-grade aluminum-plastic panel with corrosion resistance, impact resistance, pollution resistance, fire prevention and moisture resistance, and the surface is sprayed with primer treatment by special process; The panel is printed with a color circuit diagram that never fades; Students can visually compare circuit diagrams and physical objects to understand and analyze the working principle of automotive power windows, central door locks and rearview mirror systems.
4. The detection terminal is installed on the panel of the teaching pendant, which can directly detect the electrical signals of the circuit components of the automobile power window, central control door lock and rearview mirror system, such as resistance, voltage, current, frequency signal, etc.
5. The panel part of the teaching board adopts 1.5mm cold plate stamping forming structure, which has a beautiful appearance; the bottom frame part adopts steel structure welding, the surface adopts spraying process, with self-locking caster device, and the base of the teaching board is equipped with a desktop of about 40cm, which is convenient for placing data, light testing instruments, etc.
6. The teaching board works with ordinary 220V AC power supply, which is converted into 12V DC power supply by internal circuit voltage transformation rectification, without battery, reducing the trouble of charging, and 12V DC power supply has anti-short circuit function.
