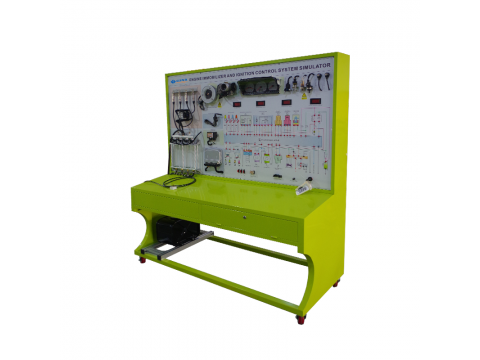

Functional features
1. Real operable car engine anti-theft system, fully display the composition of the automobile engine anti-theft system.
2. Legal key and illegal key can be used respectively to start the equipment, crankshaft and signal wheel, legal key can make the engine electronic control system produce injector injection, spark plug ignition, oil pump work, etc., illegal key locks the engine electronic control system, real demonstration of the engine anti-theft system working process.
3. The teach-in board panel adopts fireproof and moisture-proof high-grade aluminum-plastic panel, and the surface is treated by special process spraying primer; The panel is printed with a color circuit diagram and working principle diagram that does not fade; Students can visually compare circuit diagrams and physical objects to understand and analyze the working principle of automobile engine anti-theft system.
4. The detection terminal is installed on the panel of the teaching pendant, which can directly detect the electrical signals of each circuit component of the automobile engine anti-theft system, such as resistance, voltage, current, frequency signal, etc. on the panel.
5. The teaching board panel is equipped with a diagnostic seat, which can be connected to a special or general automotive coder to perform ECU code query, read fault code, clear fault code, read data flow, perform component testing, parameter setting, waveform analysis, key matching and other self-diagnosis functions for the engine control unit and anti-theft control unit.
6. The panel part of the teaching board adopts 1.5mm cold plate stamping forming structure, which has beautiful appearance; the bottom frame part adopts steel structure welding, the surface adopts spraying process treatment, with self-locking caster device, and the base of the teaching board is equipped with a desktop of about 40cm, which is convenient for placing data, light testing instruments, etc.
7. The teaching board works with ordinary 220V AC power supply, which is converted into 12V DC power supply by internal circuit voltage transformation rectification, without battery, reducing the trouble of charging, and 12V DC power supply has anti-short circuit function.
