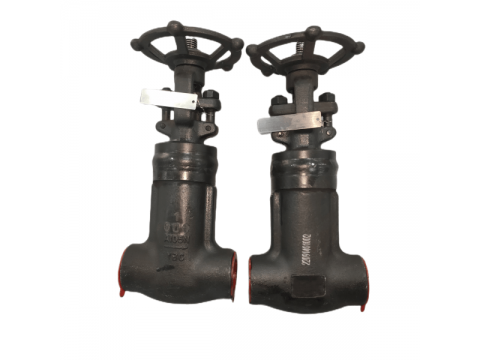

A105 Body 316 Trim Forged Gate Valve

Find top-quality forged gate valves from a reliable China Valve Supplier. This gate valve is designed for optimal performance with its 1/2-inch size and 800 LB rating. It conforms to industry standards including DN15, ASTM A105N, API 602, and ASME B16.34. Featuring a bolted bonnet and OS & Y design, it ensures secure and leak-free operation. The valve is equipped with SS 316 trim and has a socket weld end for easy installation. Control the flow with ease using the handwheel. Explore this premium forged gate valve for your industrial needs.

A105 Body 316 Trim Forged Gate Valve, API 602, 1/2 INCH, 800 LB, SW,  Handwheel

Valve Description:
1851012 API 602 Forged Gate Valve 0.5G8SA10512
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 1/2 Inch
Nominal class: 800 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: Handwheel
Body Material: ASTM A105N
Trim Material: SS 316 + STL.6
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel
