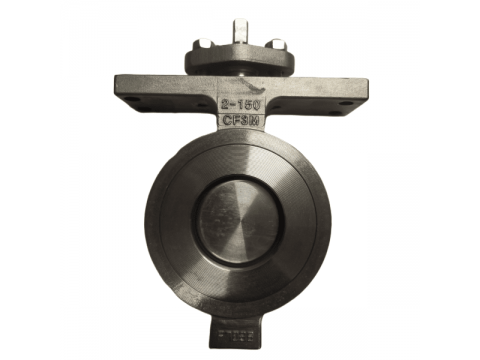

This high-performance butterfly valve is made of CF3M stainless steel and features a double offset design. It complies with API 609 standards and has a size of 2 inches with a 150 LB rating. The valve is of the wafer type, with a CF3M body and disc, and an RPTFE seat. It comes with a bare shaft and ISO 5211 mounting for easy installation.
CF3M Stainless Steel High-Performance Butterfly Valve Manufacturer, Double Offset, API 609, 2 Inch, 150 LB, Wafer, CF3M body, CF3M Disc, RPTFE seat, bare shaft with ISO 5211 Mounting
Valve Description:
1862014 Double Offset Butterfly Valve 2TB1WCF3M
Design Standard: API 609 Cat B
Structure: Double Offset
Nominal size: 2 Inch
Nominal class: 150 LB
End Connection: Wafer-RF
Operation: Bare Stem, ISO 5211 Mounting
Body Material: ASTM A351 CF3M
Trim Material: A351 CF3M disc, RPTFE seat
Face to face: API 609
Test and inspection: API 598
Key Features: Long working life for frequent open/close (million cyclings), Low torque, Replaceable seat, Tight sealing, Excellent control characteristics
Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 48 Inch (DN50 - DN800)
Pressure range: Class 150 - 300 LB
End connection: Wafer, Lug, Flanged
