API 609 Cat B Butterfly Valve

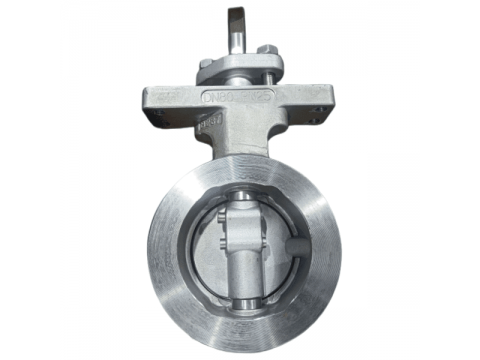

This high-performance butterfly China Valves features a double offset design and is made of stainless steel with a DN80 size, PN25 pressure rating, and API 609 compliance. It has a 3-inch diameter, 300 LB rating, and wafer-style mount. The CF8M body is paired with a CF8M disc and RPTFE seat, while the bare shaft includes an ISO 5211 mounting.

Valve Description:
1862009 Double Offset Butterfly Valve 3TB3WCF8M
Design Standard: API 609 Cat B
Structure: Double Offset
Nominal size: 3 Inch
Nominal class: 300 LB
End Connection: Wafer-RF
Operation: Bare Stem, ISO 5211 Mounting
Body Material: ASTM A351 CF8M
Trim Material: A351 CF8M disc, RPTFE seat
Face to face: API 609
Test and inspection: API 598
Key Features: Long working life for frequent open/close (million cyclings), Low torque, Replaceable seat, Tight sealing, Excellent control characteristics
