Valve Description:

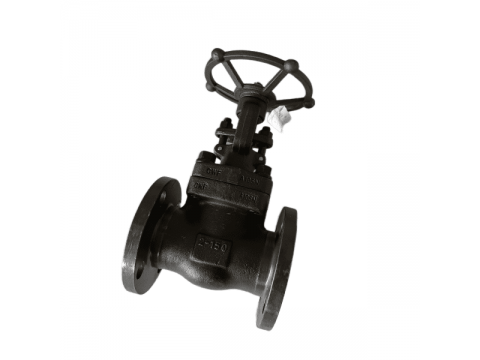

1851026 API 602 Forged China Gate Valves 2G1RA10512
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 2 Inch
Nominal class: 150 LB
Bore: Regular Bore
End Connection: RF-Integral Flange
Operation: Handwheel
Body Material: ASTM A182 F316
Trim Material: ASTM A182 F316+STL.6
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland, Integral Flange
Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 150-2500 LB
End connection: RF, RTJ
Working temperature: -29℃ - +400℃
