ASTM A105N Dual Plate Check Valve

Looking for a reliable Dual Plate Check Valve Manufacturer? We offer a top-notch selection of valves including a 6-inch size, 2500 LB pressure rating, API 594 certification, DN150 and PN420 specifications. Our Wafer Type Spring Return valves feature a Retainerless Design and metal Seat for superior performance. Experience high flow efficiency with our premium check valves. Choose quality and reliability for your industrial needs.

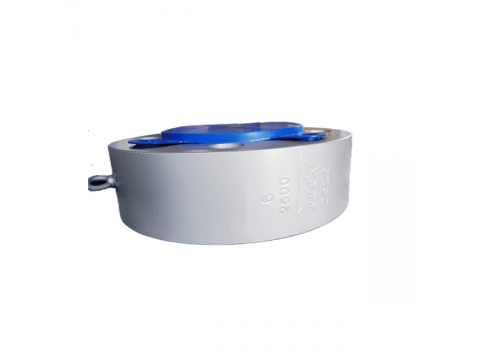

High Pressure 2500 LB Dual Plate Check Valve, API 594, 6 inch, Forged A105N body, metal Seat

Valve Description:
1842012 Dual Plate Check Valve 6SBN25A105
Design Standard: API 594
Structure: Dual Plate spring return
Nominal size: 6 Inch
Nominal class: 2500 LB
End Connection: Wafer
Operation: /
Body Material: ASTM A105N
Trim Material: 316 discs, X-750 Spring
Face to face: API 594
Test and inspection: API 598
Key Features: Retainerless Design, HIgh flow efficiency, Low noise, Short face to face length

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: Wafer, Lug, Flanged, HUB
Working temperature: -46℃ - +200℃
