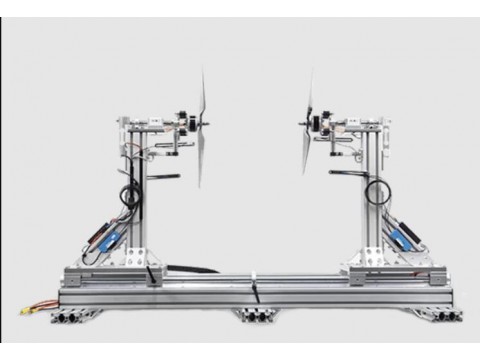

WF-CO-30KGF Coaxial Thrust Stand
WF-CO-30KGF coaxial thrust stand is a face-to-face drone test stand. It allows the testing of two motors and propellers simultaneously. This setup helps you to optimize the coaxial prototype.
Each test bench can measure max 30kgf of thrust and max 40 inch propeller. The distance between the propellers can be adjustable with the sliders.
|
Suggested Propulsion System |
5-20kg thrust |
|
Max Thrust |
30KG |
|
Max Propeller |
40inch |
|
Torque |
20 N•M |
|
Current |
0-150A |
|
Voltage |
5-65V |
|
RPM |
60-150000 RPM |
