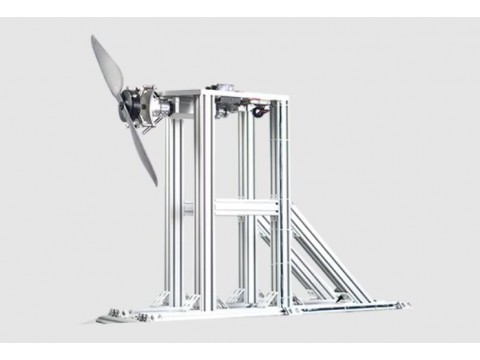

LY-70KGF Thrust Stand and Dynamometer
LY-70KGF uav dynamometer is a professional drone test equipment for heavy-lift drone testing. It allows you to test up to 70 kgf of thrust and max 60 inch propeller.
The dynamometer is used with MET software to monitor and analyze the thrust, torque, RPM, motor and propeller efficiency.
|
Suggested Propulsion System |
20-50kg thrust |
|
Max Thrust |
70KG |
|
Max Propeller |
60inch |
|
Torque |
50 N•M |
|
Current |
0-300A |
|
Voltage |
5-110V |
|
RPM |
60-150000 RPM |
