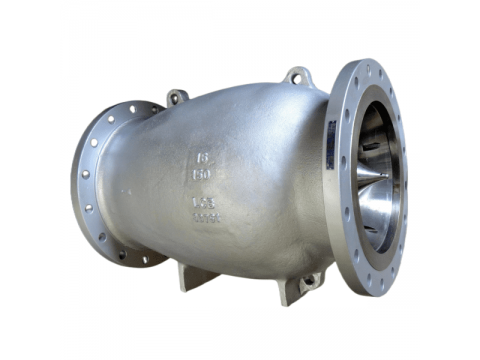

Axial Flow Check Valve

Discover a leading Axial Flow Type Check China Valve supplier offering a wide range of options, including 16 Inch (DN400) valves designed for Class 150 LB and PN20 applications. Crafted from premium ASTM A352 LCB material, our valves adhere to industry standards like API 594 and API 6D. Featuring a Flanged RF design and a streamlined body, these Non Slam Check Valves provide efficient flow control and reliable performance.

Valve Description:
1843005 Axial Flow Check Valve 16SA1RLCB
Design Standard: API 594, API 6D
Structure: Non Slam Check, streamlined body
Nominal size: 16 Inch
Nominal class: 150 LB
End Connection: Flanged RF
Operation: /
Body Material: ASTM A352 LCB
Trim Material: A182 F316, X-750 Spring
Face to face: API 594, ASME B16.10
Test and inspection: API 598
Key Features: Water Hammer Protection, High flow efficiency, Low noise, Short Pattern/long pattern available, Fast Response
