Discover a top-quality Forged Piston Check Valve from a reputable Industrial Valve Manufacturer. This valve is designed for high performance, with specifications including 1-1/2 Inch size, 800 LB pressure rating, DN40 and PN130 compatibility. It meets API 602 and ASME B16.34 standards, featuring a Bolted Bonnet design for secure operation. The body is made from ASTM A105N material, while the trim is constructed with F316 alloy. This valve is equipped with SW End connections, ensuring reliable and efficient flow control for your industrial needs.

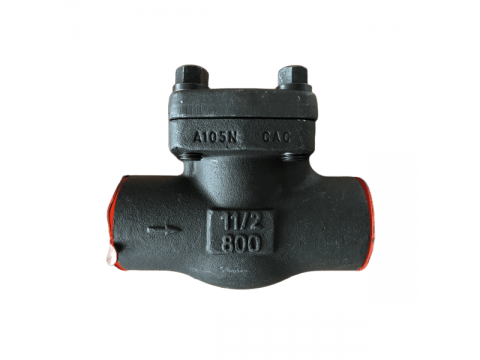

800 LB Forged Piston Check Valve, API 602, 1-1/2 INCH, 800 LB, SW, A105 Body, F316 Trim
Valve Description:
1853005 API 602 Forged Piston Check Valve 1.5P8SA10512
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet
Nominal size: 1-1/2 Inch
Nominal class: 800 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: /
Body Material: ASTM A105N
Trim Material: F316+STL, No.12
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Fully guided solid disc, Piston Type (Swing type available)
Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: /
