Discover our high-quality Two Pieces Trunnion Ball Valve from our trusted Valves Factory. This valve complies with API 6D and is made of ASTM A216 WCB material. It features a 2-inch (DN50) size and has a Class 600 LB (PN100) rating. The valve body is manufactured using a 2pcs casting process and is designed with RF ends. With F6A trim and RPTFE soft seat, this valve ensures reliable and efficient performance. Shop now for top-notch Two Pieces Trunnion Ball Valve suitable for a wide range of industrial applications.

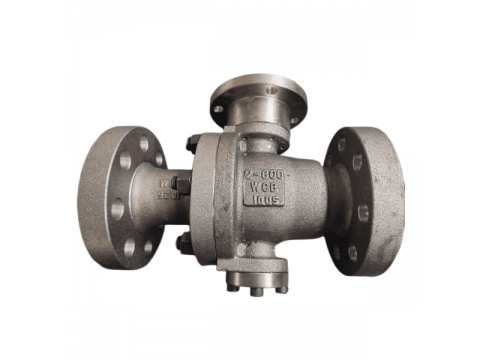

2" 600 LB WCB Trunnion Mounted Ball Valve, API 6D, RF, 2pcs Casting body, F6A trim, RPTFE Seat
Valve Description:
1811035 Trunnion Mounted Ball Valve 2BS6RWCB
Design Standard: API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 2 Inch
Nominal class: 600 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lever
Body Material: ASTM A216 WCB
Trim Material: ASTM A182 F6A, RPTFE Seat
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe API 607/6FA, Anti-Blowout Stem, Emergency sealant injection
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 24 Inch (DN15 - DN1200)
Pressure range: Class 150 - 900 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
