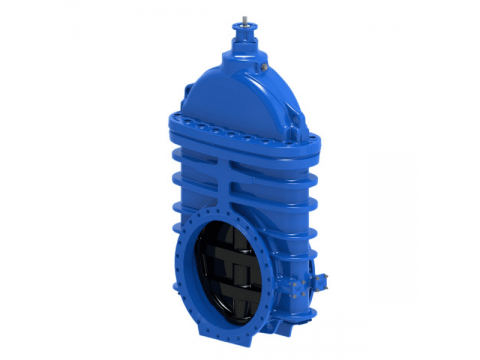

EN 558-14 Resilient Seated Gate Valve

Discover a high-quality ISO Top Mounting Resilient Seated Gate Valve from a leading China valve manufacturer. Made from GGG50 Ductile Iron, this valve is designed for superior performance. With a DN1000 size, PN16 pressure rating, and 40-inch diameter, it complies with BS 5163, EN 558-14, EN 1074, and DIN 3202 - F4 standards. Equipped with Flanged Ends for easy installation and maintenance.

EN 558-14/DIN F4, ISO top mounting, Resilient Seated Gate Valve, DN1000, PN16, ductile iron Body, NBR/EPDM seat, Handwheel

Valve Description:
1871008 Resilient Gate Valve 40GS16RG50
Design Standard: BS 5163, EN 558-14, EN 558/3, EN 1074
Structure: Resilient Seat
Nominal size: DN1000
Nominal class: PN16
End Connection: Flanged End，EN 1092, PN16, ISO 7005-2
Operation: /
Body Material: GGG50
Trim Material: GGG50+NBR/EPDM
Face to face: EN 558 Table 2 Basic Series 14, DIN 3202 - F4
Test and inspection: EN 12266-1, DIN 3230
Key Features: Internal & External with Fusion Bonded Epoxy Coating, Square Cap, Resilient seated gate valve for water and waste water to max. 70° and max 10% solid matter, WRAS approved materials available

Product Range:
Body material: Cast Iron, Ductile Iron
Normal diameter: 2 - 16 Inch (DN50 - DN400)
Pressure range: PN10, PN16
End connection: Flanged
Working temperature: up to 70℃
Suitable Service: water, sewage, or other neutral liquids
