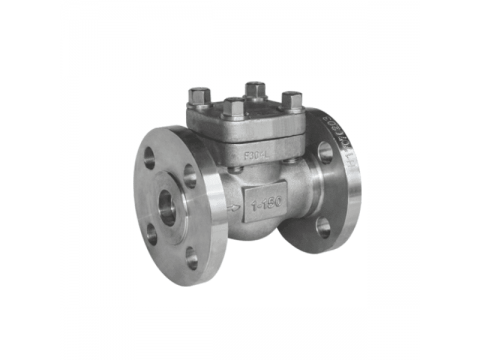

ASTM A182 F304L Swing Check Valve

This Stainless Steel F304L Integral Flange Forged Swing Check Valve is an API 602 compliant valve with a 1-inch size, 150 LB pressure rating, RF connection, and F304L body and trim. Ideal for use in industrial applications that require reliable and efficient flow control, this valve is constructed from high-quality stainless steel and features an integral flange for easy installation. With its durable and corrosion-resistant design, this valve is built to withstand harsh operating conditions and deliver long-lasting performance. Order your Stainless Steel F304L Integral Flange Forged Swing Check Valve today and experience the benefits of this high-quality valve.

Stainless Steel F304L Integral Flange Forged Swing China Check Valve, API 602, 1 INCH, 150 LB, RF, F304L Body & Trim

Valve Description:
1853003 API 602 Forged Swing Check Valve 1S1RF304L
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet
Nominal size: 1 Inch
Nominal class: 150 LB
Bore: Regular Bore
End Connection: RF-Flanged
Operation: /
Body Material: ASTM A182 F304L
Trim Material: ASTM A182 F304L
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Fully guided solid disc

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 150-2500 LB
End connection: RF, RTJ
Working temperature: -29℃ - +400℃
