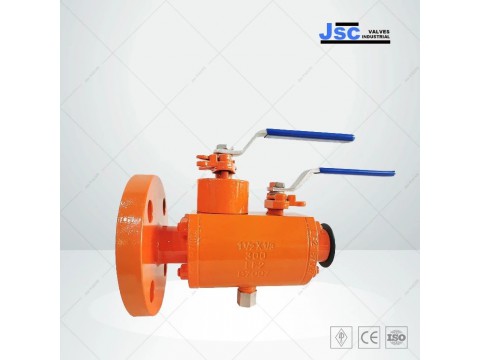

Our ASTM A350 LF2 Double Block and Bleed (DBB) ball valve, manufactured in China, adheres to API 6D standards. This valve has a compact size of 1-1/2 x 1/2 inches, making it suitable for Class 300 LB applications. It is designed as a floating type with a soft seat, bolted bonnet, and three-piece construction. The valve is equipped with a lever for easy operation. Trust in the reliability and performance of our DBB ball valve for your industrial needs.
Double Block & Bleed Valve
Valve description: Floating Ball valve, double block and bleed, dual ball, twin ball, soft seat, bolted bonnet, three pieces, forged carbon steel
Body Material: ASTM A350 LF2
Nominal Diameter: 1-1/2 Inch x 1/2 Inch
Nominal Class: Class 300 LB
Design / Manufacture: API 6D
Face to Face: ASME B16.10
Test and Inspection: API 598
metal Seat: PTFE
Mode of Operation: Lever
End Connection: RF x NPT
Double Block & Bleed Valve can be made with full bore and reduced bore, and as per option, can be made of forged steel and cast steel.
When the pipeline medium needs to be cut off, it is only necessary to rotate one of the balls to cut off the pipeline medium, and the other sphere can only act after the valve seat sealing component of the sphere fails.
The two ball bodies can also be operated alternately to achieve double insurance and double cut-off effects on pipelines. The two ball valves are integrally formed, so there is no need to adjust the flow center line of the two ball valves when installing,
It also reduces one connection point and one leakage point in the direct series installation of two ball valves, which is safe and reliable.
We also manufacture the following ball valves:
Double Block & Bleed Ball Valve
Twin Ball Valve, Twin Balls Ball Valve
TWIN BALL DB&B VALVES
Double Block & Bleed Piping Ball Valves
DB&B VALVE Twin Ball design
DBB double ball valve
SIZE RANGE AND PRESSURE CLASS
Size Range: 1/2 Inch - 8 Inch (DN15-DN200)
Pressure Range: Class 150 LB – 1500 LB (PN16-PN240)
