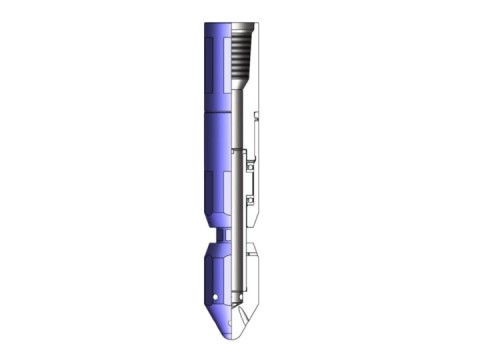

Rotary flushing tools are mainly used to efficiently clean the inner wall of oil pipes or casings, and can also play a role to smash. The rotary flushing tool can reduce the friction between the coiled tubing and the inner wall of the casing during the working process,which is conducive to the operation of the coiled tubing in a horizontal well. Multiple jet holes and rotary jet design can effectively improve the effect of smashing and achieve the purpose of efficient cleaning of the tubing and the inner wall of the casing.
Features:
1. The structure design is simple and easy to maintain;
2. The rotating nozzle covers a wide area for washing, and the effect is good;
3. Adapt to various operating liquids.
Size |
OD |
Nozzle Size |
Length |
Connection |
1.69″ |
Ø43.0mm |
Ø4.5mm×4 |
250.0mm |
1"AMMT |
2.125″ |
Ø54.0mm |
Ø5.5mm×5 |
350.0mm |
1.5"AMMT |
2.875″ |
Ø73.0mm |
Ø8.0mm×5 |
425.0mm |
2 3/8"PAC |
