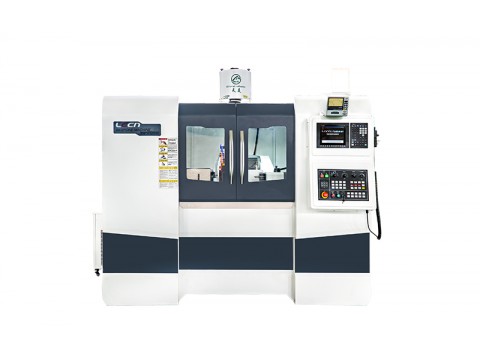

CNC Cylindrical Grinding Machine MA2060/MP2060
Product Description
Provide a complete solution for cylindrical and end face grinding of shaft and disc parts, it can carry with truss or joint robot and automatical line.
Cylindrical grinding machine is a kind of grinding machine used to reshape the exterior of objects. Cylindrical grinders can process various shapes, but the object must have a central axis of rotation. This includes, but is not limited to, shapes such as cylinders, ellipses, cams, or crankshafts. The hydrostatic guide rail and hydrostatic spindle form the basis of the high-precision cylindrical grinding machine series. They can be equipped with automation and are especially suitable for processing workshops and manufacturing.
Technical Parameters
|
ITEM |
MA2060 |
MP2060 |
|
Max Tow Centre Distance, mm |
600 |
600 |
|
Max Table Rotate Diameter, mm |
Ø400 |
Ø400 |
|
Max Loading, kg |
80 |
80 |
|
Max Workpiece Diameter, mm |
Ø190 |
Ø190 |
