We supply Architectural Mesh for Cladding Facades, ideal for protecting and decorating interior and exterior building walls. Welcome to our services.

Material

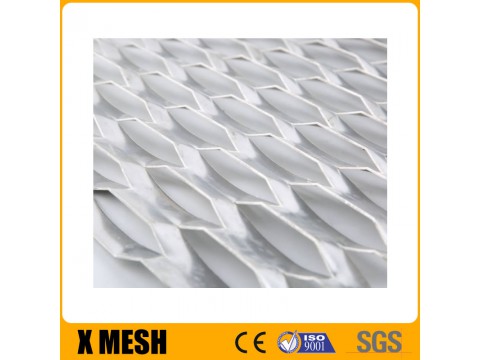

Our expanded metal mesh is available in various materials such as Steel, Stainless Steel (SS304, SS316), and Aluminum (AL).

• Steel: Strong, heavy, less corrosion-resistant, cost-effective. Good for heavy-duty, outdoor use with protective coatings.
• Stainless Steel (SS304, SS316): Highly durable, more corrosion-resistant (SS316 is best for coastal areas), modern look, moderately heavy, pricier. Ideal for harsh environments and aesthetic-focused projects.
• Aluminum (AL): Moderately strong, lightweight, naturally corrosion-resistant, more expensive than steel but lower maintenance. Great for lightweight, corrosion-resistant applications with a modern aesthetic.

General Specifications

• Surface Finish: We provide multiple options for surface finishes, including anodized, powder-coated, and galvanized finishes, enhancing the product’s durability and visual appeal.
• Long Way of Diamond (LWD): The LWD of our mesh ranges from 12mm to 200mm. This dimension is crucial for determining the mesh’s overall appearance and strength.
• Short Way of Diamond (SWD): The SWD spans from 5mm to 80mm, playing a significant role in defining the mesh’s aesthetic and structural properties.
• Long Way Opening (LWO): The LWO varies between 4mm and 100mm, affecting the transparency and design of the mesh.
• Short Way Opening (SWO): The SWO ranges from 2mm to 40mm, contributing to the mesh’s overall design and functionality.
• Strand Width: Ranging from 0.5mm to 8mm, the strand width is a key factor in the mesh’s strength and appearance.
• Thickness: The material thickness varies from 0.3mm to 12mm, providing options for different load-bearing requirements.
• Overall Thickness: The overall thickness of the mesh, including the raised strands, ranges from 0.5mm to 40mm, adding to the mesh’s three-dimensional effect.
• Open Area: The open area percentage can range from 20% to 80%, allowing for varying degrees of light penetration and air flow.
• Weight: The weight varies depending on the material and specifications but typically falls within 2kg/m2 to 10kg/m2, making it suitable for a variety of architectural applications.
• Color: We offer a wide range of colors, subject to the chosen material and surface finish. Custom colors are available to match specific project requirements.
