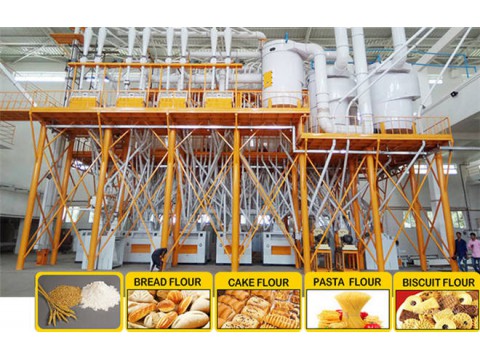

Steel Structure Flour Milling Plant
1. Structure
a. This 2-storey plant has a compact structure, and it needs only a small number of operators, usually 2-3 men fewer. The operators could get a clear view upwards when standing on the bottom, such as the running status of purifier, mill, air lock, centrifugal fan, square plansifter, etc.
b. Compared with multi-storey type, this steel structure Wheat Milling Equipment could be put into use 4 months earlier due to the shortened building time. Hence, the investment will be returned much faster.
c. It takes a short time to finish installation and pilot run. For example, the installation time for the 140TPD is only 60 days.
d. Due to the limited building height, the construction cost is only 1/2 or 1/3 of mulit-storey type.
2. Complete Product
a. The steel frame is manufactured from high quality steel that is provided by Wuhan Iron and Steel (Group) Corp. The steel columns and supporting parts are welded by 5mm steel tubes and square tubes to offer high strength and good stability. The steel frame is independently installed, and it is not connected to any building.
b. For this Pingle flour milling plant, the steel platform is constructed by 3-millimeter-thick anti-slipping riffled plates which are formed by bending process. The steel plates possess high rigidity, and they are not likely to deform, thereby improving the stability of the entire structure.
c. The girder used to hanging the square plansifter is 200mm double-girder type, and it ensures normal working of the square plansifter due to its high strength and good resistance to deformation.
