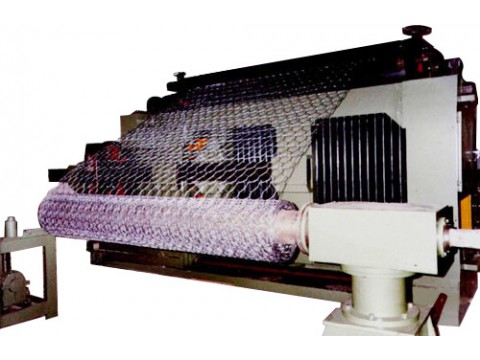

Automatic Hexagonal Wire Mesh Machine

The Automatic Hexagonal Wire Mesh Machine, also known as the Gabion Mesh Machine, is expertly engineered to manufacture gabion mesh and heavy-duty hexagonal wire mesh with a range of mesh sizes and widths. This machinery can apply coatings such as heavy galvanization and zinc. For enhanced corrosion resistance, wires coated with zinc and PVC are also supported.

Mesh Sizes
The machine is capable of producing mesh in several sizes, including:
60 x 80 mm
80 x 100 mm
100 x 120 mm
120 x 150 mm
180 x 200 mm
Additional custom sizes can also be accommodated.

Maximum Netting Width
The machine can handle mesh widths up to 4300 mm.

Wire Diameter Capacity

• Galvanized Wire: 3 - 4 mm
• PVC Wire: 4.1 - 5.1 mm
• Power Requirements
• The machine operates with a 22 kW power supply.

Physical Dimensions and Weight

• Size: 7200 x 1400 x 2400 mm
• Weight: 15 MT


Production Output
It can produce between 165 and 500 meters per hour.

Features

• Automatic Stop System (Optional): Automatically halts the machine once the coiling process is complete or in case of wire breakage.
• Infrared Ray Safety Protection System (Optional): Provides additional safety during operation.
• Automatic Oil System: Enhances operational efficiency and reduces manual maintenance requirements.
• This advanced machine is ideal for producing durable hexagonal wire mesh for gabions, reinforcing construction projects, and other applications. Its automated features, high production output, and flexibility in mesh sizing make it an invaluable asset for wire mesh production.
