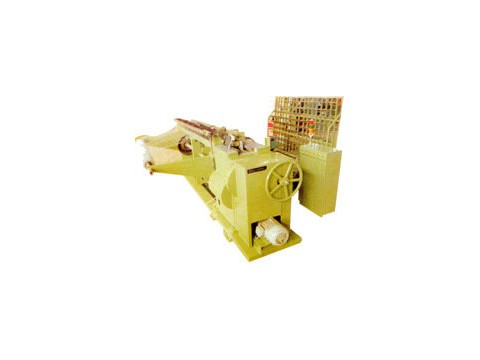

Reverse Twisted Hexagonal Mesh Machine

Hexagonal wire mesh weaving machines adopt straight-reverse twisted principle, do not need to make the iron wire into spring type, so work efficiency is increased so that can work continuously. The models such as: 1/2", 5/8", 3/4", 1", 11/4", 11/2", 2", 3", 80x100 mm or at the customer's requirement.

Machine Specifications:

Mesh Sizes
The machine can produce a wide range of mesh sizes based on specific customer requirements. Standard mesh sizes include:

• 1/2" (12.7 mm)
• 5/8" (15.9 mm)
• 3/4" (19 mm)
• 1" (25.4 mm)
• 1-1/4" (31.75 mm)
• 1-1/2" (38.1 mm)
• 2" (50.8 mm)
• 3" (76.2 mm)
• 80 x 100 mm

Weaving Widths

• Single weaving width: Up to 2.5 m
• Double weaving width: Up to 1.25 m each

Production Speed

• Maximum speed of 65 meshes per minute, adjustable depending on the raw material type.

Alarm System

• Automated alarm triggers when wire breaks, mesh breaks, or preset mesh length is achieved.
