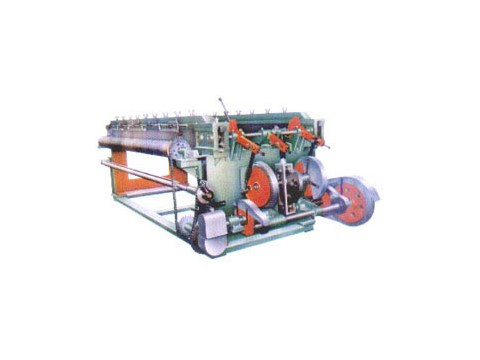

The Normal Twist Hexagonal Mesh Machine is an advanced piece of equipment designed for the efficient production of hexagonal wire mesh, commonly used for various applications including poultry fencing, garden fencing, and structural reinforcement. This machine is engineered to deliver high-quality mesh with precise control over dimensions and wire specifications, ensuring reliable performance for diverse industrial and agricultural needs.By providing detailed specifications and capabilities, the Normal Twist Hexagonal Mesh Machine ensures that manufacturers can produce high-quality hexagonal wire mesh efficiently and reliably, catering to a broad spectrum of industrial, agricultural, and construction applications.
Technical Specifications and Detailed Description
Power Requirements
The Normal Twist Hexagonal Mesh Machine is designed to operate efficiently with a standard electrical supply:
- Power Consumption: 7.5 kW to 15 kW depending on the model
- Voltage: 380V / 50Hz (customizable based on regional specifications)
- Phase: Three-phase electrical supply for stable and consistent operation
Machine Size and Weight
The dimensions and weight of the machine vary based on the model, but typical specifications include:
- Length: 7 meters to 10 meters
- Width: 1.2 meters to 1.5 meters
- Height: 1.8 meters to 2.2 meters
- Weight: 3,000 kg to 5,000 kg (3 to 5 metric tons)
Number of Twists
The machine is capable of producing a standard twist pattern in the hexagonal mesh:
- No. of Twists: 3 twists per cell (adjustable depending on mesh size and application requirements)
Applicable Raw Material Specifications
The machine can process various types of wires to produce hexagonal mesh, ensuring versatility and adaptability:
- Wire Diameter: 0.5 mm to 2.0 mm
- Wire Material: Low carbon steel wire, galvanized steel wire, PVC-coated wire, stainless steel wire
- Zinc Coating (for galvanized wire): 30 g/m² to 300 g/m²
- PVC Coating Thickness: 0.2 mm to 0.5 mm
