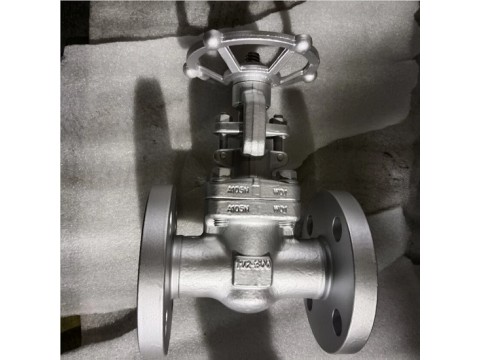

Discover high-quality API 602 carbon steel gate valves from Chinese valve suppliers, featuring a size of 1-1/2 inches (DN40) and a design pressure rating of 300 LB (PN50), meticulously crafted from ASTM A105N material. Equipped with a bolted bonnet and rising stem, this valve ensures reliable performance. Its reduced bore and flanged end design enhance versatility and facilitate easy installation. Trust in the precision engineering of our factory to deliver superior functionality for your industrial applications.
Valve description:Gate valve, bolted bonnet, RISING STEM, RB.Design: API 602.Body: ASTM A105NNominal size: 1-1/2 INCH.Nominal class: 300 LB.End Connection: FLANGE.Face to face: ASME B16.10. Test and inspection: API 598.Product Range:Body material:CARBON steel.Normal diameter: 1/2 - 32 Inch (DN15 - DN800).End connection: BW, Flanged.Pressure range: Class 150-2500 LB.Working temperature: -29℃ - +425℃.
