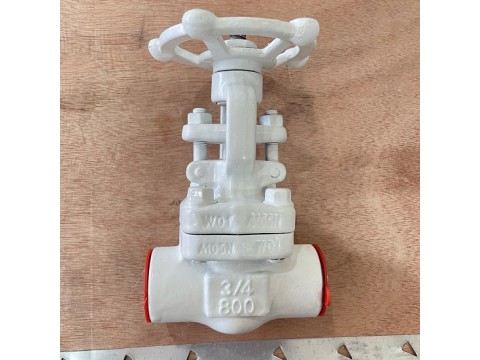

ASTM A105N Rising Stem Gate Valve

Discover high-quality ASTM A105N rising stem gate valves from our trusted Chinese manufacturers. This valve comes in a size of 3/4 inch (DN20) with a pressure rating of 800 LB (PN130), conforming to API 602 standards. Featuring a bolted bonnet design, it is suitable for socket weld (SW) connections and is offered in various sizes ranging from 1/2 to 2 inches and pressure ratings spanning from 150 to 800 LB.

Valve description:Gate valve, bolted bonnet, RISING STEM.Design: API 602.Body: ASTM A105NNominal size: 3/4 INCH.Nominal class: 800 LB.End Connection: SW.Face to face: MFG'S. Test and inspection: API 598.Product Range:Body material: CARBON steel.Normal diameter: 1/2 - 2 Inch (DN15 - DN50).End connection: SW, BW, Flanged.Pressure range: 150-800 LB.Working temperature: -29℃ - +425℃.
