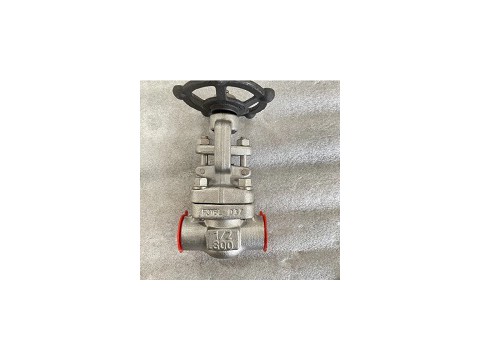

ASTM A182 F316L Gate Valve

Find top-quality ASTM A182 F316L gate valves from a leading China Manufacturer. Crafted from stainless steel with a bolted bonnet, these gate valves come in 1/2 inch (DN15) size, suitable for 800 LB (PN130) pressure ratings. They conform to API 602 standards and feature a socket weld (SW) design, available in sizes ranging from 1/2 to 2 inches and pressure ratings from 150 to 2500 LB.

Valve description:
Gate valve, bolted bonnet, Socket Weld
Design: API 602.
Body: ASTM A182 F316L
Nominal size: 1/2 INCH.
Nominal class: 800 LB.
End Connection: ASME B16.11.
Face to face: MFG'S.
Test and inspection: API 598.

Product Range:
Body material: Stainless steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: SW, NPT (THREAD), BW, Flanged.
Pressure range: PN16 - PN420 (150-2500 LB).
Working temperature: -29℃ - +300℃.
