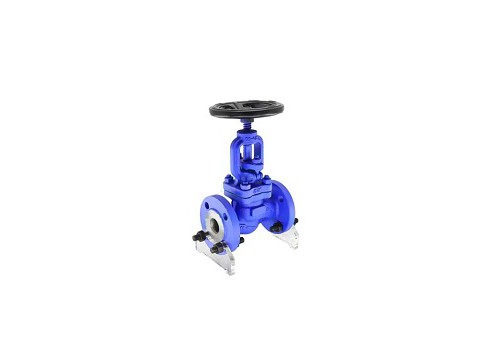

ASTM A351 CF3 Globe Valve

Produced by leading ASTM A351 CF3 Ball Valve China Manufacturer, this stainless steel valve boasts a 2-inch size, designed to handle pressures up to 150 LB (PN20). Compliant with BS 1873 standards, it features a bolted bonnet, integral seat, and OS&Y design. With RF (raised face) and FB (full bore) configurations, it's compatible with ASME B16.5 end connections, ensuring reliable performance in various industrial applications.

Valve description:
Globe valve, BOLTED bonnet, RF, FB, INTEGRAL SEAT, OS&Y.
Design: BS 1873.
Body: ASTM A351 CF3
Nominal size: 2 Inch.
Nominal class: 150 LB.
End Connection: ASME B16.5.
Operation: HANDWHEEL
Face to face: ASME 16.10.
Test and inspection: API 598.

Product Range:
Body material: Stainless Steel.
Normal diameter: 2 - 32 Inch (DN15 - DN800).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +300℃.
