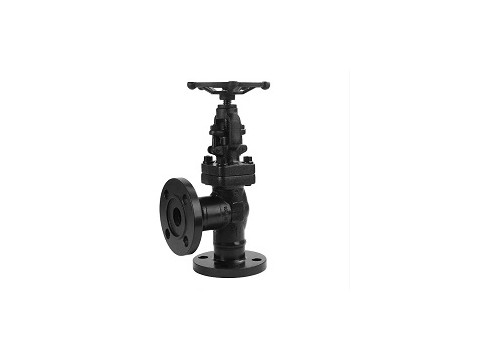

ASME B16.34 Angle Globe Valve

Procure top-quality ASME B16.34 angle globe valves from a reliable Chinese  suppliers. Available in 2-inch size, Class 300 LB, DN50, PN50, constructed with ASTM A105N carbon steel. Featuring a bolted bonnet, handwheel operation, RF (raised face) design, suitable for 1/2 to 2-inch pipes, and pressure ratings ranging from 150 to 2500 LB.

Valve description:
Angle Globe valve, bolted bonnet, RF.
Design: ASME B16.34.
Body: ASTM A105N
Nominal size: 2 Inch.
Nominal class: 300 LB.
End Connection: RF.
Operation: Handwheel
Face to face: MFG'S.
Test and inspection: API 598.

Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 -2 Inch (DN15 - DN50).
End connection: BW, Flange.
Pressure range: Class 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +425℃.
