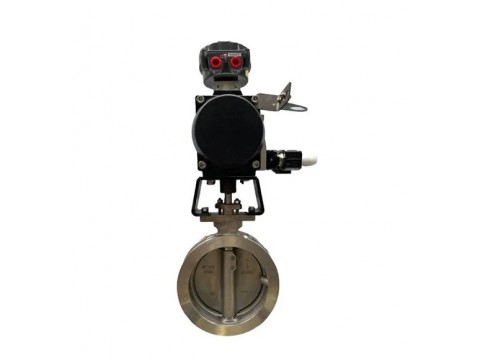

China Supplier Pneumatic Triple Offset Butterfly Control Valve is expertly manufactured from ASTM A351 CF8M, providing superior durability and corrosion resistance. This 8-inch valve is rated for Class 150 LB, making it suitable for various moderate pressure applications. It features RF flanged ends for easy installation and maintenance. The valve is designed with approximate equal percentage flow characteristics, ensuring precise and efficient flow control. Equipped with a pneumatic actuator, it delivers reliable performance and accuracy in demanding industrial settings.
Detail Information
Product Name: Triple Offset Butterfly Control Valve
Structure: Triple Offset
Body Material: ASTM A351 CF8M
Size: 8 Inch, DN200
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Actuation: Pneumatic Actuator
Medium: Oil
Flow Characteristics: Approximate Equal Percentage
Product Range
Standard: ASME, DIN, JIS, GB, etc
Body Material: ASTM A216 WCB, ASTM A351 CF8, CF8M
Size Range: 3-24 Inch, DN80-DN600
Pressure Rating: PN10-PN110, Class 150-600 LB
Working Temperature: -196°C to +500°C
Rangeability: 25:1 (60 Degree Opening); 50:1 (90 Dgree Opening)
End Connections: Flnaged
Leakage Class: ANSI B16.104 Class VI
Actuator Options: Pneumatic Cylinder Actuator, Electronic Actuator, Pneumatic Diaphragm Actuator
