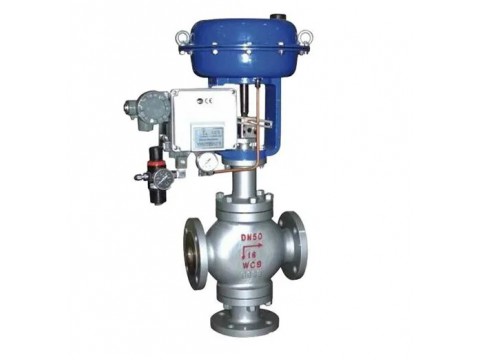

Explore the versatility and exceptional performance of the 3-Way Diverting Control Valve from Chinese suppliers. This valve is crafted from durable ASTM A217 WC9 material, designed to ensure reliable operation in diverse industrial environments. With a compact 2-inch size and Class 150 LB pressure rating, the valve features a double-seated design to guarantee stable operation with Class IV leakage control. Equipped with a multi-spring pneumatic diaphragm actuator, this valve provides precise control and fast responsiveness, making it ideal for applications requiring efficient fluid diversion.
Detail Information
Product Name: 3-Way Diverting Control Valve
Main Structure: 2 Outlet, 1 Inlet
Key Features: Three Way, Diverting Type, Double Seat
Body Material: ASTM A217 WC9
Size: 2 Inch, DN50
Pressure: Class 150 LB, PN16
End Connection: Flanged
Actuation: Multi-spring Pneumatic Diaphragm Actuator
Seat Leakage: GB/T 4213 Class IV (metal Seal)
Product Range
Body Material: ASTM A216 WCB, ASTM A217 WC9, ASTM A352 LCB, ASTM A351 CF8, CF3, CF8M, CF3M
Size Range: 3/4-12 Inch, DN20-DN300
Pressure Rating: PN16-PN100, Class 150-600 LB
End Connections: Flanged, Welded
Media: Water, Gas, Oil, Steam
Working Temperature: -196°C to +450°C
Flow Characteristics: Equal Percentage, Linear
Actuator Options: Pneumatic Actuators
