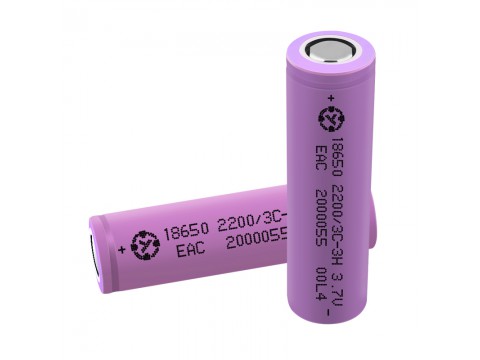

Battery Specification:
https://www.inr18650.com/products/icr-18650-battery-2200mah-3.7-v-3c.html
2200mah battery 3c for power tools, full capacity, high cycling, low internal resistance and ultra-low
self-discharge to meet the requirements of your power products.
self-discharge to meet the requirements of your power products.
Capacity: 2200 mAh
Minimum Capacity: 2150 mAh
Discharge Rate: 3C
Nominal Voltage: 3.7V
Internal Resistance: ≤25mΩ
Cycle Life: 500
Charge Voltage: 4.2V士0.03V
Charge Current: 0.5C (about 3 hours) 1C (about 2 hours)
Standard Discharge Mode: 0.2C Constant current discharge to 2.75V
Max. Continuous Discharge Current: 6600mA
Operating Temperature Range: Recharge (0-45°C) Discharge (-20-60°)
Long time Storage Temperature: -20~25°C
Initial Size: Diameter:18.15+0.20mm Height:65.0士0.50mm
