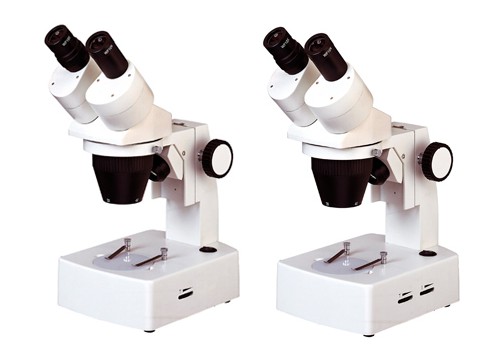

Click image to view original image
- Clear and wide field eyepiece
- Two groups of objectives
- 45°inclined tube, 360°rotatable, interpupillary distance and left lens tube diopter adjustable, interpupillary distance adjustment range: 55mm～75mm.
Parameters :
|
(1) MZ41-2 Series |
||||
|
|
|
|
|
|
|
MZ41-2A |
MZ41-2AI |
MZ41-2B |
MZ41-2BI |
|
|
Eyepiece |
WF10X(Φ 20mm) |
|||
|
Objective |
1X, 3X |
2X, 4X |
||
|
Total magnification |
10X, 30X |
20X, 40X |
||
|
Field of view |
Φ 20~Φ 6.7 |
Φ 10~Φ 5 |
||
|
Vertical effective movement |
88mm≤ h< 265mm |
88mm≤ h< 130mm |
||
|
Working distance |
88mm |
|||
|
base size |
215X160x60mm |
|||
|
Illumination |
Reflected light source: 12V10W halogen lamp with reflector cup, brightness adjustable |
|||
|
(2) MZ41-3 |
||||
|
|
|
|
|
|
|
MZ41-3A |
MZ41-3AI |
MZ41-3B |
MZ41-3BI |
|
|
Eyepiece |
WF10X(Φ 20mm) |
|||
|
Objective |
1X, 3X |
2X, 4X |
||
|
Total magnification |
10X, 30X |
20X, 40X |
||
|
Field |
Φ 20~Φ 6.7 |
Φ 10~Φ 5 |
||
|
Vertical effective movement |
88mm≤ h< 265mm |
88mm≤ h< 130mm |
||
|
Working distance |
88mm |
|||
|
base size |
215X160x60mm |
|||
|
Illumination |
Reflected light source:12V10W halogen lamp with reflector cup，adjustable Transmitted light source:12V10W halogen lamp, brightness adjustable |
|||
