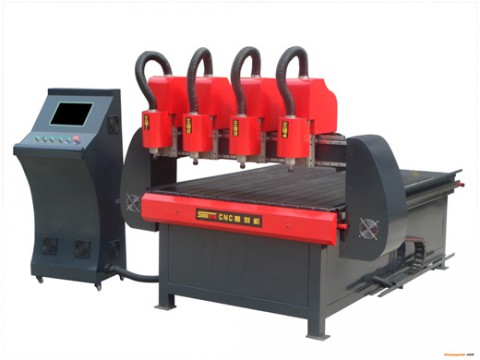

Subaru cnc wood engraving machine 4
1 , The machine itself is made of thick-walled steel structure. Bed through finite element analysis ( FEA ) And design for the machine provides a rigid and stable platform for processing and all parts in the bed bed processing has been eliminated before the stress.
2 SB-CNC1325 Router Type engraving machine is the most cost-effective an economical product, matching domestic 4.5KW Spindle (optional import Italy HSD Spindle), "/span> 5.5KW Centrifugal pumps
3 , Tops, vacuum table, made of bakelite, high temperature, corrosion, can be strong adsorption of non-metallic materials of different sizes. Vacuum processing table is divided into six regions, single-zone process can also be processed at the same time, has increased processing efficiency
4 , Machine tool Y Axis two-track bilateral drive, can be re-cut
5 , With USB Transmission of Embedded DSP CNC system can achieve breakpoint carving off memory, standard 128M Flash Flash memory can be completely offline run
6 , Processing speed, efficiency, and air-way speeds of up to 45000mm/min , The wave plate for engraving, up to 15000mm/min Speed
7 Range of applications: Solid wood carving door, MDF carving, hard plastic sculpture, antique furniture, sculpture carving, wood art of fresco, musical instruments, sculpture carving three-dimensional surface, shape cutting, etc.
|
NO.
|
Performance indicators
|
Parameters
|
|
1
|
X, y, z Tour
|
1300
|
