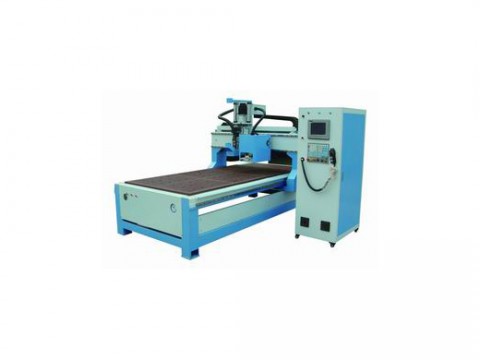

Subaru vertical automatic tool changing engraving machine
1 , The machine itself was made from thick wall steel construction. Bed through finite element analysis (FEA) and design for the machine provides a rigid and stable platform for processing and all parts in the bed bed processing has been eliminated before the stress.
2 All positioning bearings, ball screws, linear rails, rack, both machine control system to maintain centralized automatic lubrication system. This is a ball screw and linear guide manufacturers unanimously recommended approach.
3 , This section models the main parts are top international brands, such as Japan Yaskawa AC servo drive system, Italy HSD spindle
4 , Y axis adopts two-track bilateral machine drive can be re-cut
5 , Vacuum processing table is divided into six regions, single-zone process can also be processed at the same time, has increased processing efficiency
6 , Z axis by the aerodynamic balance of system support, pneumatic balance system is a closed loop, whose role is to minimize gas consumption in operation
7 , With integrated industrial computer LNC-M500i control system to assure high-speed, high accuracy machining
8 , The complexity of this machine is suitable for diversified products processing, is more suitable for production of items: MDF carving, cabinet door sculpture, computer desk sculpture, furniture, sculpture and other non-metallic plate material and non-ferrous metal sculpture, such as copper, aluminum carving process.
|
NO.
|
Performance indicators
|
Parameters
|
|
1
|
X, y, z Tour
|
1250
|
