High Sensitivity 1.4MP CCD Camera MC25 Use Sony ICX825 sensor

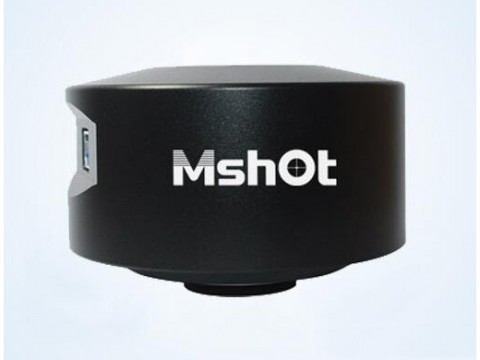

High Sensitivity 1.4MP CCD Camera MC25

MC25 is a 1.4MP high sensitivity CCD camera special for waek fluorescence microscope imaging. It adopts Newest Sony EXview HAD CCD II Series ICX825 sensor, take advantage of high sensitivity and Wide Dynamic Range. Optimized micro lens, improved the response to near-infrared light. The sensitivity in environment of near-infrared is 3 times as traditional CCD Sensor. MC25 can reduce the thermal noise under long time exposure. Additional with image caching technology, the image transmission is stable and reliable. MC25 is an ideal microscope camera for weak fluorescence and complex light under microscope.

Benefits:

• High sensitivity and Wide Dynamic Range
• With 16MB cache, ensure the image transmit stably and high speedily
• Excellent photosensitive property, The sensitivity in environment of near-infrared is 3 times as traditional CCD
• Software trigger and hardware trigger for optional, hardware trigger interface use Hirose 12pin, it is stable and reliableSupport TWAN AND DirectShow,
• Support VisualC++、Visual Basic、Visual C#、Borland Delphi、BorlandC++

Click to know MSHOT Microscope Digital Imaging Software

Improvement of Dynamic Range                                                                                      Improvement of Quantum Efficiency   (at wavelength 850nm)

The dynamic range is defined as the amount of saturation                                                                                 The quantum efficiency is standardized with the ICX285AL.

signal/dark signal noise, and is standardized with the ICX285AL.

Pixel Array Structure

Sprectral Wavelength

Peformance Photo

Parameters :

Model	MC25
Pixel	1.4 megapixels
Active Size	8.772mm(H)x6.605mm(V)  2/3"
Pixel Size	6.45μm x 6.45μm
Resolution and frame Rate	1360 x 1024（full resolution）：19FPS
	1280 x 720（ROI）：25FPS
	680 x 512（SUM2-Mono）：32FPS
	340 x 256（SUM4-Mono）：48FPS
	region of interest (ROI)
Response Spectrum	380nm～1000nm
Sensitivity of Light	2000mV-1/30s Accumulation
Exposure Time	41μs～600s
Scanning	progressive scanning
Shutter	Global Shutter
Analog-digital Conversion	12bit
Image cache	16MB
Work mode	continuous output/software trigger/hardware trigger
Exposure control	Manual exposure/ Auto exposure
White Balance Control	Manual White Balance/Auto White Balance/Area White Balance
Software interface	DirectShow/TWAIN
Temperature	Working：0℃～40℃ /Storage：-20℃～60℃
Humidity	Working：10%～90%RH（no condensation）/Storage：10%～60%RH
