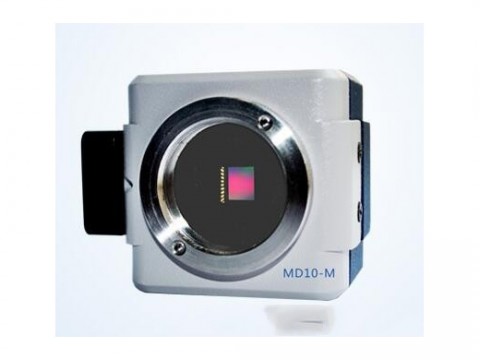

1.3MP Monochrome CMOS Camera MD10-M

1.3MP Monochrome CMOS Camera MD10-M

The biggest advantage of microscope camera MD10-M is that it has the features of CCD camera with the price of CMOS camera, especially its image under weak fluorescence is as good as CCD camera’s. The relative wide spectral response range of MD10-M makes it can induce images under ultraviolet, visible light and near infrared. This camera has several kinds of programmable control for different use conditions. It also has variety kinds of image formats to fulfill different kinds of users’ requirement. Installed our self-developed image analysis software, MD10-M can get real-time preview, measurement, shooting, image stitching, Extended Depth of Field and image analysis, etc.

Features of microscope camera MD10-M:

• The image under weak fluorescence is as good as CCD camera’s
• Induce images under ultraviolet, visible light and near-infrared
• Support variety kinds of programmable control
• High cost-efficiency

Application Fields of microscope camera MD10-M:

MD10-M can be used on all kinds of microscopes. If you need to have fluorescence images captured by a high cost-efficiency camera, MD10-M will be the best choice for you.

Parameters :

Sensor type	MT9M001	Video data format	Mono8
Sensor size	1/2"CMOS monochrome	Sensitivity	2.1V/Lux-sec
Effective pixel	1280*1024(1.3M)	Spectral response	380nm-1050nm
Resolution& frame rate	1280*1024(ROI):30fps	Noise	45dB
	1024*768(ROI):38.7fps
	640*480(ROI):55fps
	320*256(ROI):93fps
	Arbitrary sizes ROI	Dynamic range	68.2dB
Size of pixel	5.2μm*5.2μm	Definition	800 line
Scanning Mode	Progressive scanning	Exposure control	auto/manual, zone exposure
Shutter	Electronic rolling shutter (ROLLINGSHUTTER)	Photo support format	RAW,BMP,JPG,PNG
Exposure time	0.032-280ms	Programmable control	Camera work rate, image size, camera mode, image brightness, exposure time, gain, eliminate flicker, GAMMA, contrast, black balance, sharpness
OS	Windows XP(32); Win7(32/64); Win8(32/64)	Optical Interface	TWAIN，DirectShow
Data interface	USB2.0 480Mb/s	Instruction	standby mode and electrify mode keep lighting with LED, flashing while work
Power consumption	Less than 1.5W	Power supply	USB5Vsupply (Without external power supply circuit )
Woking temperature	0~50℃	Storage temperature	-20℃~60℃
Working humidity	10%-90%RH                  （No condensation ）	Storage humidity	10%-60%RH
Lens Mount	C/CS mount	Physical dimension	45*48*36.4mm (without extending ring and external fixed block)
