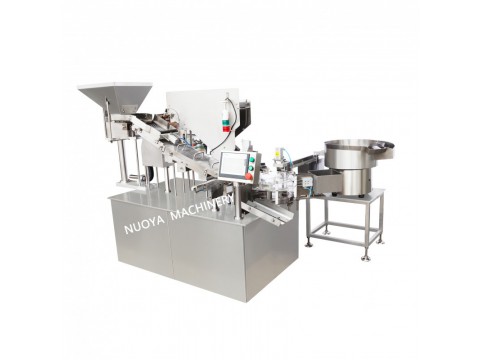

Click image to view original image
This unit is safe, efficient, accurate and clean. It sells well with its high quality and performance.
1) This unit was designed for layered filling of tablets into a tube and then placing a plastic stopper in the top.
2) Automatic tube feeder.
3) Automatic tablet channel Counting.100% accurate.
4) No tube, no filling; No tablets, no capping.
5) Automatic vibratory bowl for stopper (cap feeding).
6) Automatic cap press sealing.
7) Detection and rejection if less filling
8) PLC+HMI control system
II. Main Technical Specifications
|
Model |
NTF-100 |
|
Filling range |
10-30pcs/tube as per customer’s requirement |
|
Diameter of tablet |
8-30mm |
|
Thickness of Tablet |
3-8mm |
|
Length of Tube |
80-180mm |
|
Max. Capacity |
40Tubes/min depending on the product and tube size |
|
Power supply |
1.2kw |
|
Compressive air |
0.5~0.6MPA, 0.28CBM/min |
|
Overall size |
2300mm*1600mm*1680mm |
|
Weight |
450Kgs |
