Principle

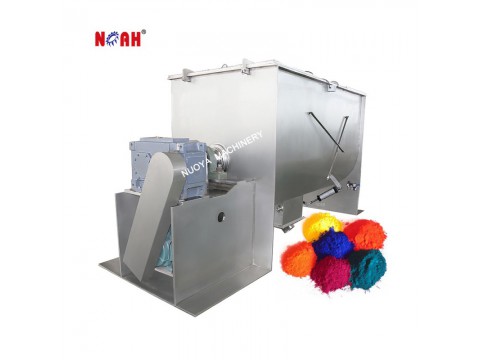

WLDH Series Horizontal Ribbon Mixer is composed of container, screw stirring paddles and transitional parts; the screw paddle are generally made into 1 layer or 3 layers, the outer screw converge is the material to the center from two sides, and the inner layer of screw conveys the material to the two sides from the center, so as to from convection mixing. Ribbon mixer has a good result in the mix of viscosity or cohesion powder and of putting liquid and mash material into the powder. The cylinder cover can be fully open so as to clean and change the device.
Features
1. Big coefficient of loading, small occupied area.
2. It is difficult to clean when it is used to mix viscous or adhesive material.
3. High efficiency horizontal ribbon mixer.
Applications
WLDH Series Horizontal Ribbon Mixer is generally used in the mixing of viscous or adhesive powder material, or the mixing of powder which needs to add liquid, and paste material. Meanwhile, because it is difficult to clean viscous material, the machine is suitable for the mixing case, where the output is large and there is no need of displacing material variety frequently.
Technical Paramenters
|
Model/Project |
All Volume (m3) |
Loads Coefficient |
Powder (kw) |
Size |
Weight (kg) |
|
WLDH -0.1 |
0.1 |
0.4-0.8 |
3 |
1190×740×770 |
330 |
|
WLDH -0.3 |
0.3 |
4 |
2030×630×980 |
720 |
|
|
WLDH -0.5 |
0.5 |
7.5 |
2320×730×1130 |
980 |
|
|
WLDH -1 |
1 |
11 |
2800×920×1320 |
1700 |
|
|
WLDH -1.5 |
1.5 |
11 |
3180×1020×1550 |
1800 |
|
|
WLDH -2 |
2 |
15 |
3310×1120×1640 |
2100 |
|
|
WLDH -3 |
3 |
18.5 |
3750×1290×1820 |
3000 |
|
|
WLDH -4 |
4 |
22 |
4220×1400×1990 |
3980 |
|
|
WLDH -5 |
5 |
22 |
4220×1500×1990 |
4620 |
|
|
WLDH -6 |
6 |
30 |
4700×1610×2260 |
6180 |
|
|
WLDH -8 |
8 |
37 |
4420×2150×2470 |
8200 |
|
|
WLDH -10 |
10 |
45 |
5520×2960×2720 |
8920 |
|
|
WLDH -12 |
12 |
45 |
5720×3010×2840 |
9520 |
|
|
WLDH -15 |
15 |
55 |
5840×3540×2940 |
9950 |
