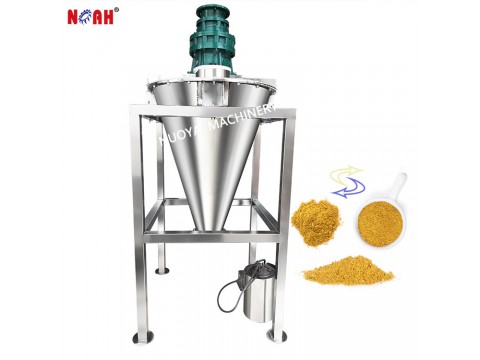

DSH Series Double Screw Cone Powder Mixer

Specifications

1.       Efficient capacity 100-30000liters

2.       Drive 1.5kw-45kw

3.       Efficiency 10-30mins/batch

Description

This DSH Double Screw Cone Powder Mixer has a good mixing effect. The mixing time is short.

DSH Double Screw Cone Powder Mixer is convection mixer of high efficiency. It has characteristic of gentle, high accuracy mixing and no damage to product. Two screws suspended from a turning arm, with different rotation semi diameter and different length, make three-dimensional action; meantime, two screws make self rotation.

Function

DSH Double Screw Cone Powder Mixer is used for applications in which gentle mixing and residue-free discharge is required.

Furthermore, this DSH Double Screw Cone Powder Mixer is suitable for intermediate material storage combined with temporary blending. This DSH Double Screw Cone Powder Mixer fits for mixing of powder, granule, crystallization, agglomeration, mixing with spraying liquid etc.

Details

Performance & Technical Features

•Efficient capacity 100-30000liters

•Drive 1.5kw-45kw

•Efficiency 10-30mins/batch

(Depending on recipe and configuration)

•Gentle mixing&low power   consumption

•Minimum heat generation

•No leftover and quick discharge

Function configuration

•Heating/cooling jacket

•Sealing device

•Spraying device

•Cleaning device

•Sampling device

•Drive control  Discharge

•Discharge control

•Manual self-lock

•Pneumatic driven

•Electric driven

•Discharge valve

•Dislocation valve

•Half spheric valve

•Butterfly valve

•Slide valve

Doors/opening on mixer

•Standard flange connection

•Quick-opening feeding inlet

•Exhaust port

•Cleaning doors

Material standard

·Carbon/mild steel

·Contact parts SS 304

·All mixing tank SS 304

·Contact parts SS 316L

·All mixing tank SS 316L

·Special material

·Anti-corrosion material cladded

·Abrasion proof material painted

·Functional

Main Technical Data

Model		DSH
		-0.3	-0.5	-1	-2	-3	-4	-6	-10	-15	-20	-30
Working Capacity	(M3)	0.18	0.3	0.6	1.2	1.8	2.4	3.6	6	9	12	18
	(KG)	200	300	650	1200	1800	2500	3600	6000	9000	12000	18000
Revolution /rotation		2/108		2/57			1.8/57			1.2/57
Power(KW)		3	3	4	5.5	7.5	11	15	18.5	22	37	45
Weight(kg)		500	600	1200	1500	2300	25200	3700	3980	4500	5500	6800
DIA		950	1150	1580	1950	2170	2280	2560	3000	3450	3770	4100
H		2060	2350	2840	3500	3760	4360	4800	5900	6680	6700	7500
