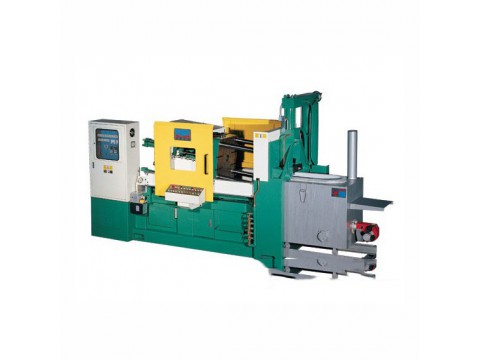

KS38T die casting machine

Click image to view original image
Brand: jincheng
型号: KS38T
规格: 3100mm*1120mm*1600mm
Price: 29000.00USD/Taiwan
Min.Order: 1 Taiwan
Supply 10000 Taiwan
Delivery: Shipment within 35 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2018-06-15 11:40
Hits: 2477436
Buy
Company Detail


Details
1-1热室压铸机技术参数表
HOT CHAMBER DIE-CASTING MACHINE SPECIFICATIONS
ITEM 项目
UNIT 单位
KS38T
Clamping Force 锁模力
KN
380
Clamping Stroke 锁模行程
200
Ejector Force 顶出力
KN
30
Ejector Stroke 顶出行程
50
Mould thickness 模具厚薄距离
100-320
Moulding board size 模板尺寸
450*480
Lnner space between tiebbbar 哥林柱内距
290*290
Tiebar diameter 哥林柱直径
50
Lnjection place 射料位置
0-40
Lnjection force 射料力
KN
45
Lnjection stroke 射料行程
125
Lnjection stroke 射料量
0.65/0.82/1.1
Hammer diameter 锤头直径
35/40/45
Traverse stroke 离嘴行程
150
Working pressure 工作压力
Mpa
10
Driving Motor 马达功率
KW
7.5
Crucible Capability 坩锅容量
L(㎏/Zn)
50(325)
Puel oll 燃油
kg/h
4
Electric cooker 电炉
kw
20
Oil box capability 油箱容量
L
200
Injection nozzle heating power 射咀加热工具
kw
2
Machine weight 机重
kg
2800
Overall dimension 机身总尺寸
3100*1120*1600
